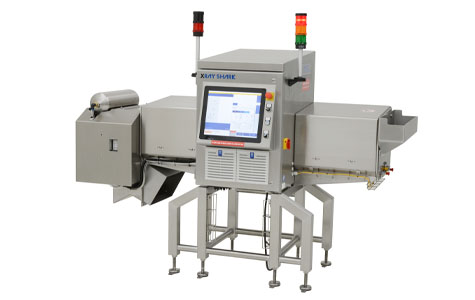

XRAY SHARK® XD BULK

  • X-ray inspection for bulk flow products like almonds, spinach, carrots, or dried fruit
  • Detects high density materials like metal, ceramic, stone, plastic or glass
  • Easy-to-use interface with auto calibration on color 17“ touchscreen
  • XIA software for instant analysis and detection with high accuracy and reliability
  • Integrated rejection unit: Single or multi-flap and air gun option to reduce waste
XRAY SHARK® XD BULK

Features

  • Real time detection with color-coded contamination analysis
  • Masking function for better detection of contamination
  • Autosaving of inspection data with time and date stamp
  • User-friendly operation with 255 pre-set products
  • USB and Ethernet for data transfer
  • Quick release conveyor belt for easy cleaning and maintenance
  • Built-in remote control and maintenance
  • 24 hours non-stop operation
  • TÜV-approved: reliable safety standard

Function

The XD BULK x-ray system is designed for bulk flow products, such as unpacked nuts, dried fruits or sweets. The high-performance XIA software offers instant analysis and detection with high accuracy and reliability, thus avoiding false rejects. Designed for maximum safety and comfort for daily operations. The optimized design allows for easy cleaning and maintenance. All components are easily removable so that the device is quickly ready for operation again. As a result, the XD BULK is especially suitable for all industries that have to ensure effective hygienic standards.

Delivery Scope

  • X-ray scanner with XIA image processing software
  • Integrated rejection unit (single reject flap, multi-reject flap or air gun)
  • Complete protection against radiation and PILZ safety circuit
  • Certified test cards with soda lime glass, ceramics, steel spheres in various diameters

Application

Inspection bulk materials such as:
  • Nuts or almonds
  • Candies
  • Dried fruit
  • Legumes

Specifications

Model Name/ID XD25-L1-BULK (former XBD10 BF) XD35-L1-BULK (former XBD20+ BF) XD45-H1-BULK (former XBD40+ BF)
X-Ray Source Single beam, max. 60kV (50W) variable in voltage + current Single beam, max. 60kV (50W) Single beam, max. 80kV (480W)
Radiation Leakage 1 µSv/h or less at 10 cm outside cabinet surfaces using all safety devices 1 µSv/h or less 3 µSv/h or less
Safety Special product tunnel, magnetic safety switches at cabinet doors and tunnel hatches, emergency stop push button, emergency stop in/out interfaces to safety circuits of production line, X-ray off key switch, PILZ safety circuit Special product tunnel, magnetic safety switches at cabinet doors and tunnel hatches, emergency stop push button, emergency stop in/out interfaces to safety circuits of production line, X-ray off key switch, PILZ safety circuit Special product tunnel, magnetic safety switches at cabinet doors and tunnel hatches, emergency stop push button, emergency stop in/out interfaces to safety circuits of production line, X-ray off key switch, PILZ safety circuit
X-Ray Detector Low noise 307 mm line scan CCD diode pitch 0.8 mm, integrated x-ray beam stop (optional diode pitch 0.4 mm) Low noise 408 mm line scan CCD Low noise 612 mm line scan CCD
X-Ray View top down top down top down
Cooling Highly efficient, silent DC filter fans Highly efficient, silent DC filter fans Highly efficient, silent DC filter fans
Housing Finish Stainless steel grade AISI 304 / ISO 1.4301 (X5CrNi18-10) Stainless steel grade AISI 304 / ISO 1.4301 (X5CrNi18-10) Stainless steel grade AISI 304 / ISO 1.4301 (X5CrNi18-10)
Enclosure Rating IP54 (according to IEC 60529), including touch panel and fans, optional IP66 IP54 (according to IEC 60529), including touch panel and fans, optional IP66 IP54 (according to IEC 60529), including touch panel and fans, optional IP66
Conveyor Belt Type Polyurethane belt (FDA), light blue Polyurethane belt (FDA), light blue Polyurethane belt (FDA), light blue
Belt Width 300 mm 400 mm 500 mm
Scanning Width 246 mm 346 mm 446 mm
Conveyor Speed Conveyor speed 30 to 60 m/min, depending on product Conveyor speed 30 to 60 m/min, depending on product Conveyor speed 30 to 60 m/min, depending on product
Flow Rate 4 – 25 m3/h 6 – 35 m3/h 8 – 45 m3/h
Max. Product Weight 7 kg (one product layer for best sensitivities) 7 kg (one product layer for best sensitivities) 7 kg (one product layer for best sensitivities)
Available Reject Method reject flap, multi reject flaps or air guns reject flap, multi reject flaps or air guns reject flap, multi reject flaps or air guns
Product Memory 255 different product set-ups 255 different product set-ups 255 different product set-ups
Display 17“ color-TFT capacitive touchscreen 17“ color-TFT capacitive touchscreen 17“ color-TFT capacitive touchscreen
Inspection Features Autocalibration, auto-adaption to density distribution, density, hard contrast, soft contrast, masking technology, SuperContrast, SizeFilter, AutoEdge masking, images AutoSave/Load, Multi Segment Inspection, metal can and foil inspection, fill quantity, generator energy by product, password protection Autocalibration, auto-adaption to density distribution, density, hard contrast, soft contrast, masking technology, SuperContrast, SizeFilter, AutoEdge masking, images AutoSave/Load, Multi Segment Inspection, metal can and foil inspection, fill quantity, generator energy by product, password protection Autocalibration, auto-adaption to density distribution, density, hard contrast, soft contrast, masking technology, SuperContrast, SizeFilter, AutoEdge masking, images AutoSave/Load, Multi Segment Inspection, metal can and foil inspection, fill quantity, generator energy by product, password protection
In/Outputs Programmable outputs (contamination, ready, Emergency OFF) Programmable inputs (Emergency OFF, wake up, optional control signals) Programmable outputs (contamination, ready, Emergency OFF) Programmable inputs (Emergency OFF, wake up, optional control signals) Programmable outputs (contamination, ready, Emergency OFF) Programmable inputs (Emergency OFF, wake up, optional control signals)
Data Transfer Ethernet for remote support via internet, USB for external keyboard/ mouse/ memory stick Ethernet for remote support via internet, USB for external keyboard/ mouse/ memory stick Ethernet for remote support via internet, USB for external keyboard/ mouse/ memory stick
Max. Weight 0.5 t 0.7 t 1.4 t
Power Supply 1ph, 230 VAC +/- 10%, 50/60 Hz, full operation: max 0.5 kW 1ph, 230 VAC +/- 10%, 50/60 Hz, full operation: max 0.5 kW 1ph, 230 VAC +/- 10%, 50/60 Hz, full operation: max 2.0 kW
Compressed Air Supply without pusher 0 (zero) bar/psi with optional pusher system minimum 4 bar/58 psi without pusher 0 (zero) bar/psi with optional pusher system minimum 4 bar/58 psi without pusher 0 (zero) bar/psi with optional pusher system minimum 4 bar/58 psi
Environmental Conditions 0°C to +30°C / 32°F to 86°F, with relative humidity max 90%, non-condensing Option: additional external cooling devices to extend the temperature range 0°C to +30°C / 32°F to 86°F, with relative humidity max 90%, non-condensing Option: additional external cooling devices to extend the temperature range 0°C to +30°C / 32°F to 86°F, with relative humidity max 90%, non-condensing Option: additional external cooling devices to extend the temperature range
Conformity CE, compliant to German x-ray regulations, specific adaptation for other countries CE, compliant to German x-ray regulations, specific adaptation for other countries CE, compliant to German x-ray regulations, specific adaptation for other countries
